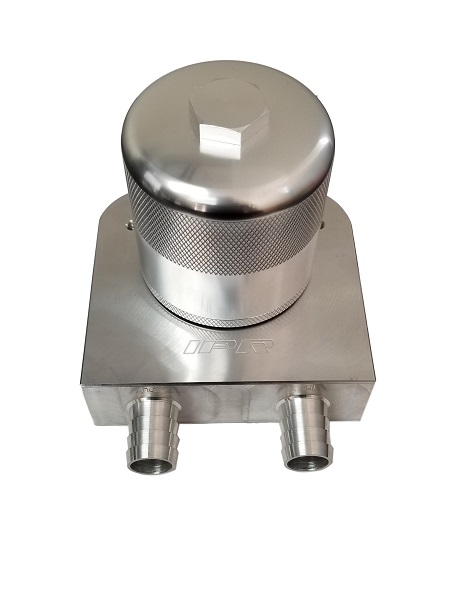

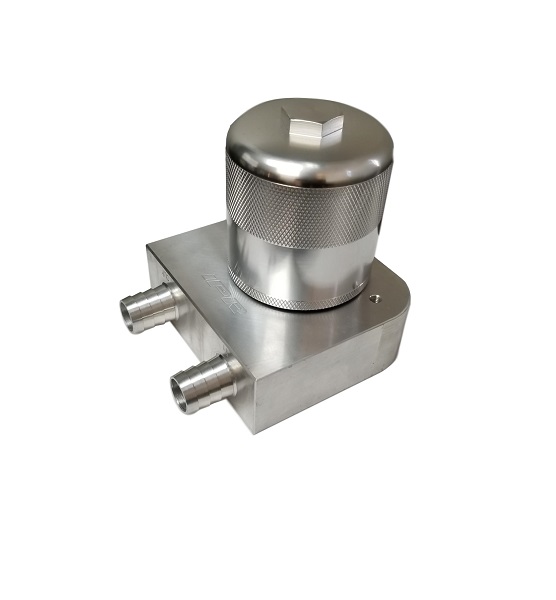

IPR High Flow Coolant Filter Ford 6.0

IPR High Flow Coolant Filter Ford 6.0
Center magnet attracts metal particles

(10 reviews)

IPR Innovative Performance Research Innovative Performance Research has finished testing and is currently producing our coolant filters. This filter is the only one the in the market that can be used as a full flow filter, this will allow you to install it inline on the heater hose and filter 100% of the coolant that runs through the heater hose which is much more effective in contamination filtration than anything out in the market. You can also use it as a bypass filteration by using a T connector. No need be concerned that filter may completely plug up, this would not cause any issues if the filter was to completely plug, you would only lose heated coolant going to your heater core = no heater. IPR's High Flow Coolant Filter is fully serviceable, the filter can be fully dissassembled and washed with any conventional degreaser or solvent. The filter element is stainless steel and features magnet in the bottom center of the element. The magnet attracts metallic particles such as corroded cast iron from your engine block that has separated. The magnetic design was implemented to extend filter service intervals, it allows the filter element to trap sand and non metallic particles while most of the metallic particles stay on the bottom of the filter element bonded on the magnet. IPR's High Flow Coolant Filter is much more effective because IPR uses 3/4" hoses. IPR has seen many coolant bypass kits in the last 2 years and have refuse to develop a product that is minimally effective using only small 1/4 or 3/8 heater hose. Most of these other bypass filtration kits on the market uses a Baldwin filter with a 1/8 orifice. IPR's High Flow Coolant Filtration out flows anything in the market by 83%!!!

Check out these pictures on powerstroke.org of actual customer's filtering results

SKU CF60473
Weight 7.00 lbs
Product Manual Product Instructions

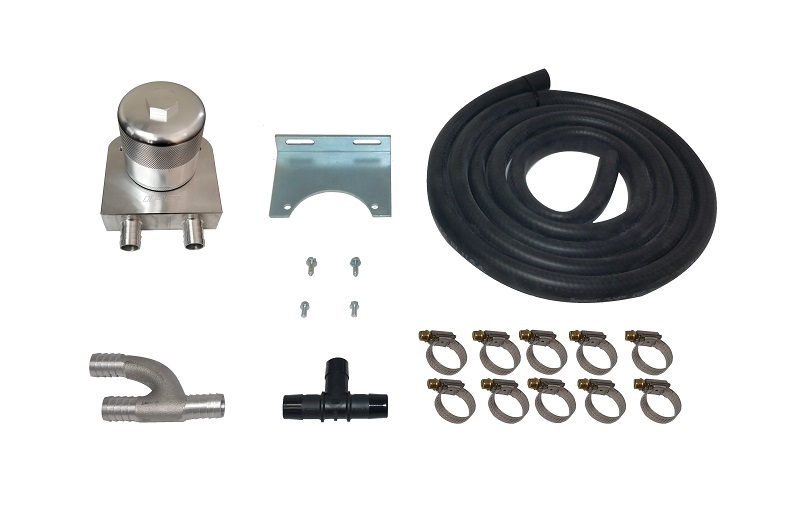

Coolant Filter Tool

Our price: $249.00
Quantity
: *
: *
: *
Type the characters you see in the picture:


*
The code is case-sensitive and must be entered exactly as above.
FORD Cylinder head core deposit
Remanufactured Turbo Charger Low Pressure 2008-2010 F250, F350, F450, F550 Powerstroke 6.4
FORD V Band Clamp Turbo Down Pipe 2003-2010 F250, F350, F450, F550 Powerstroke 6.0 International VT365
FORD Cylinder head core deposit Remanufactured Turbo Charger Low Pressure 2008-2010 F250, F350, F450, F550 Powerstroke 6.4 FORD V Band Clamp Turbo Down Pipe 2003-2010 F250, F350, F450, F550 Powerstroke 6.0 International VT365
$250.00
$675.00
$31.58

Race Exhaust Stainless Turbo Ford 6.7 2012-2015 F250, F350, F450, F550
Ford 6.0 Diesel Fuel Injector Oring Rebuild Kit
Ford Intercooler to Throttle Body Hose 2003-2004
Race Exhaust Stainless Turbo Ford 6.7 2012-2015 F250, F350, F450, F550 Ford 6.0 Diesel Fuel Injector Oring Rebuild Kit Ford Intercooler to Throttle Body Hose 2003-2004
$450.00
$11.50
$29.00

VNT Turbo Solenoid, IPR Valve Pigtail Connector All 6.0 Ford F250, F350, F450, F550 Powerstroke 6.0 International VT365
IPR CF2 Manual Select Bypass High Flow Coolant Filter Ford 6.0
FORD Coolant Degas Tank Bottle & Cap F250, F350, F450, F550 Powerstroke 6.0
VNT Turbo Solenoid, IPR Valve Pigtail Connector All 6.0 Ford F250, F350, F450, F550 Powerstroke 6.0 International VT365 IPR CF2 Manual Select Bypass High Flow Coolant Filter Ford 6.0 FORD Coolant Degas Tank Bottle & Cap F250, F350, F450, F550 Powerstroke 6.0
$40.00
$349.00
$99.36
Average customer rating:

(10 reviews)



5 Most useful customer reviews (see all reviews):
Nick KOINSKI
Excellent product, I recommend this for any engine. Was on my 6.0, then put on my 7.3. The filtering is amazing. Well done fellas! One thing I would add to your kit are ball valves on the filter. That way fluid loss is just what's in the filter bowl.
Loading...Was the above review useful to you? Yes (1) / No (0)
Brandon Beckley
Oct 18, 2017
This filter kit is one of the best kits I have seen. The machined parts are beautiful and very functional. The filter element works perfect and catches much more than i thought it would. I would recommend this to anyone.
Loading...Was the above review useful to you? Yes (0) / No (0)
Mr. Trae Hardman
Sep 6, 2017
Daily cleaning at first now monthly..Does it's job well.
Loading...Was the above review useful to you? Yes (0) / No (0)
Curtis mancuso
Jul 21, 2017
Works great I paired this with the gen 3 manifold works like a charm. I had my 6.0 flushed for 10 hours with many gallons of distilled water before install, and this filter is still capturing every little iron flake and sediment that fords junk coolant left behind. Way better setup then any other filtration setup out there it's inline not a bypass
Loading...Was the above review useful to you? Yes (0) / No (0)
Mr. Allen Shelton
Nov 20, 2016
This customer purchased the item at our site.
Quality machined parts. The kit included everything needed and it went on without a hitch. The first cleaning of the filter told me I should've installed this long ago. Only two complaints...if installed per the instructions the filter housing is upside down so you lose about a cup of coolant when the filter is changed. Also...the filter to housing o-ring seems a tad soft. Mine is compressed to nearly flat so my filter is seeping just a bit. The filter has been in place for nearly two years so I don't consider that too bad. All things considered I'm pleased with it.
Loading...Was the above review useful to you? Yes (0) / No (0)
